Max. Resolution : 1920x1080
Certification : CE,FCC,RoHS
Pixels : 2 Mega
Auto Focus : Yes
Interface Type : USB
Package : Yes
Image Sensor : CMOS
Image Sensor : 1/2.9 Inch CMOS
Lens : f=5.35-107.0mm
Zoom : 20x zoom
Effective pixel : 2.38 mega pixel(6:9)
Pan movement speed : 350 dgree (100 dgree/S)
Minimum illumination : 0.25Lx(on)
Color : Black
Style : SDI Camera
Technology : Pan/Tilt/Zoom
FOV : 60.2°(W)-3.7°(T)
[EU Stock]20X Optical Zoom PTZ Camera HDMI/SDI/USB1080P Video Conference Camera for Meeting Church Broadcast Live Streaming Online Learn, Works with Zoom, Skype, OBS, Teams, WebEx
20x optical zoom, 1/2.9 inch high quality, 2.1MP (16:9) CMOS sensor
HDMI USB 3G-SDI 3 Outputs Simultaneous
Crystal clear HD 1080P and 1080i image quality, superior quality with full glass lens material
2D and 3D NR for best video quality in different lighting conditions
Accurate, smooth, and silent PTZ movement
60.2° Wide Field of View with no video distortion
Preset: 0-9 via IR remote setting (255 via RS232)
Easier 360° remote control thanks to IR receivers on the front and back of the PTZ camera
Support Visca, Pelco-P, and Pelco-D control, RS232/RS485 camera control
Plug and play USB connectivity, easy to setup
Compatible with many popular applications and cloud system
Video Compression Format supports YUV, MJPG, H.264
Image Flip and Image Mirror. Press MENU - IMAGE - Mirror, and adjust Left/Right/UP/DOWN to manipulate image flip and Mirror.

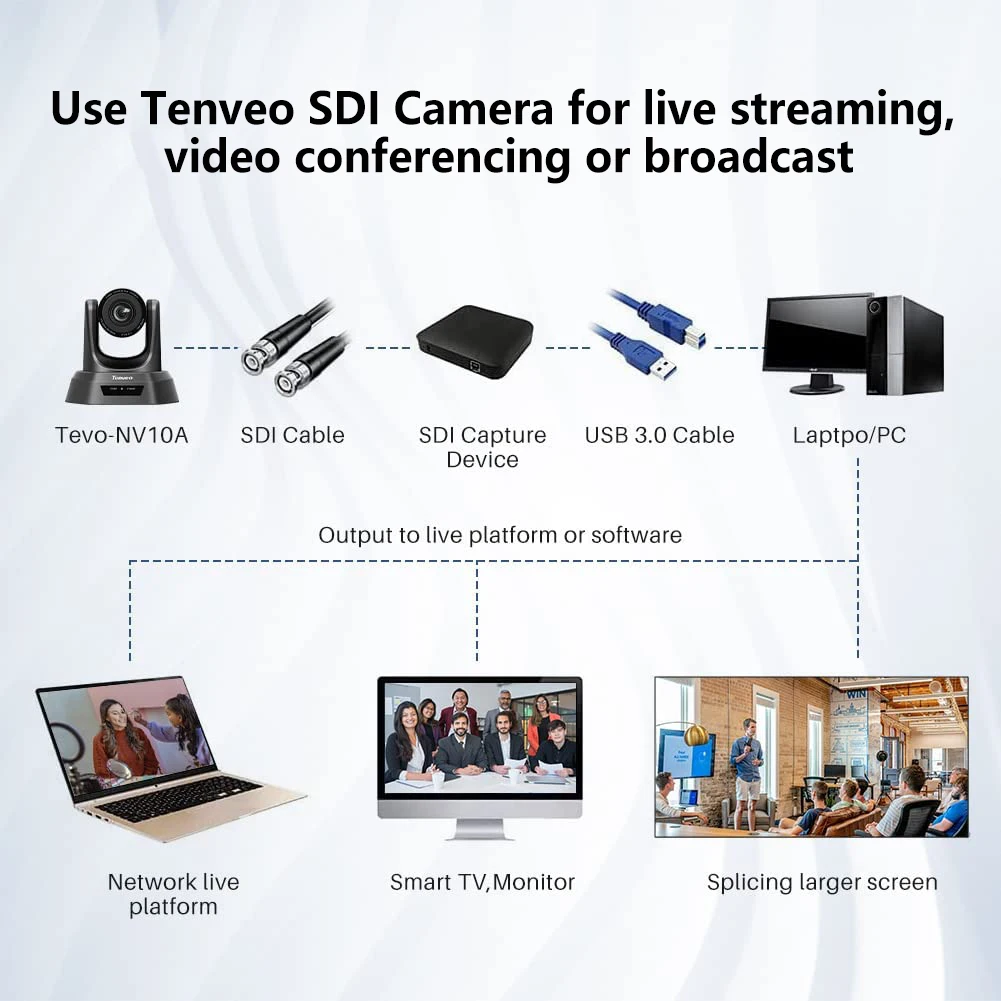

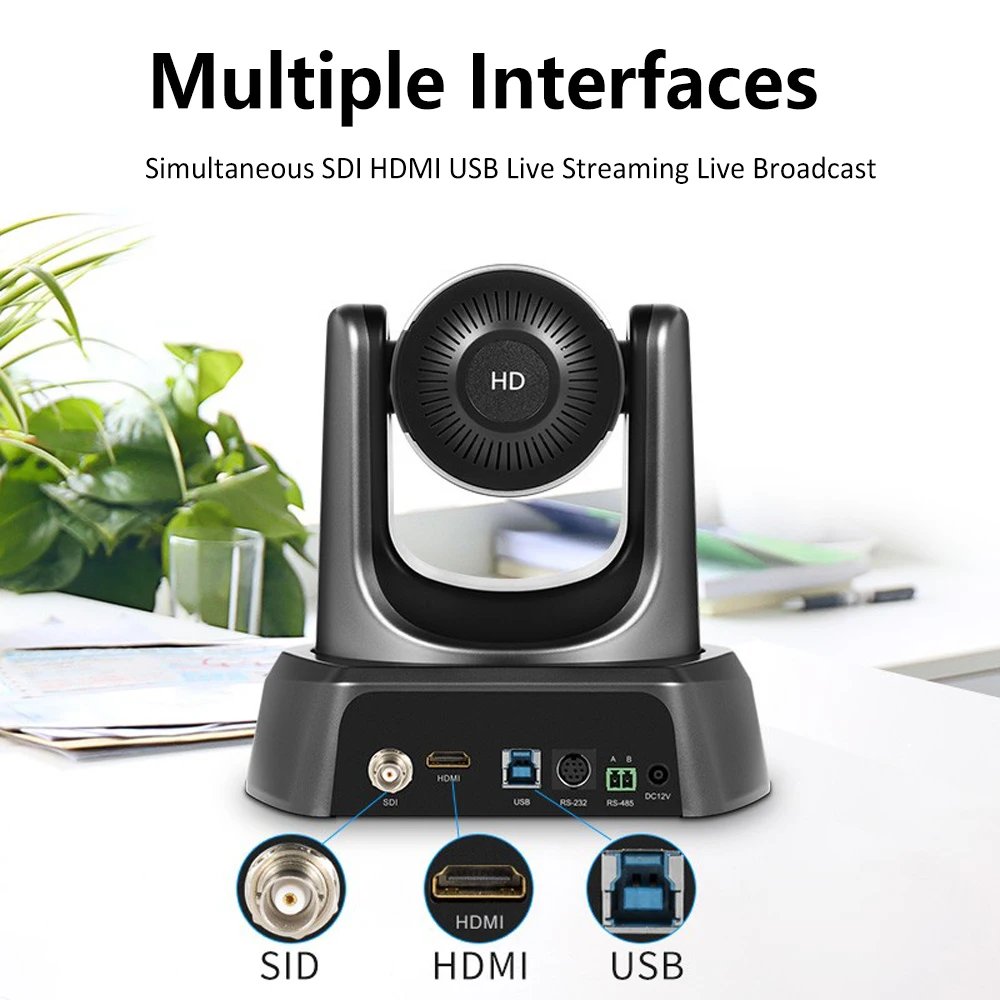

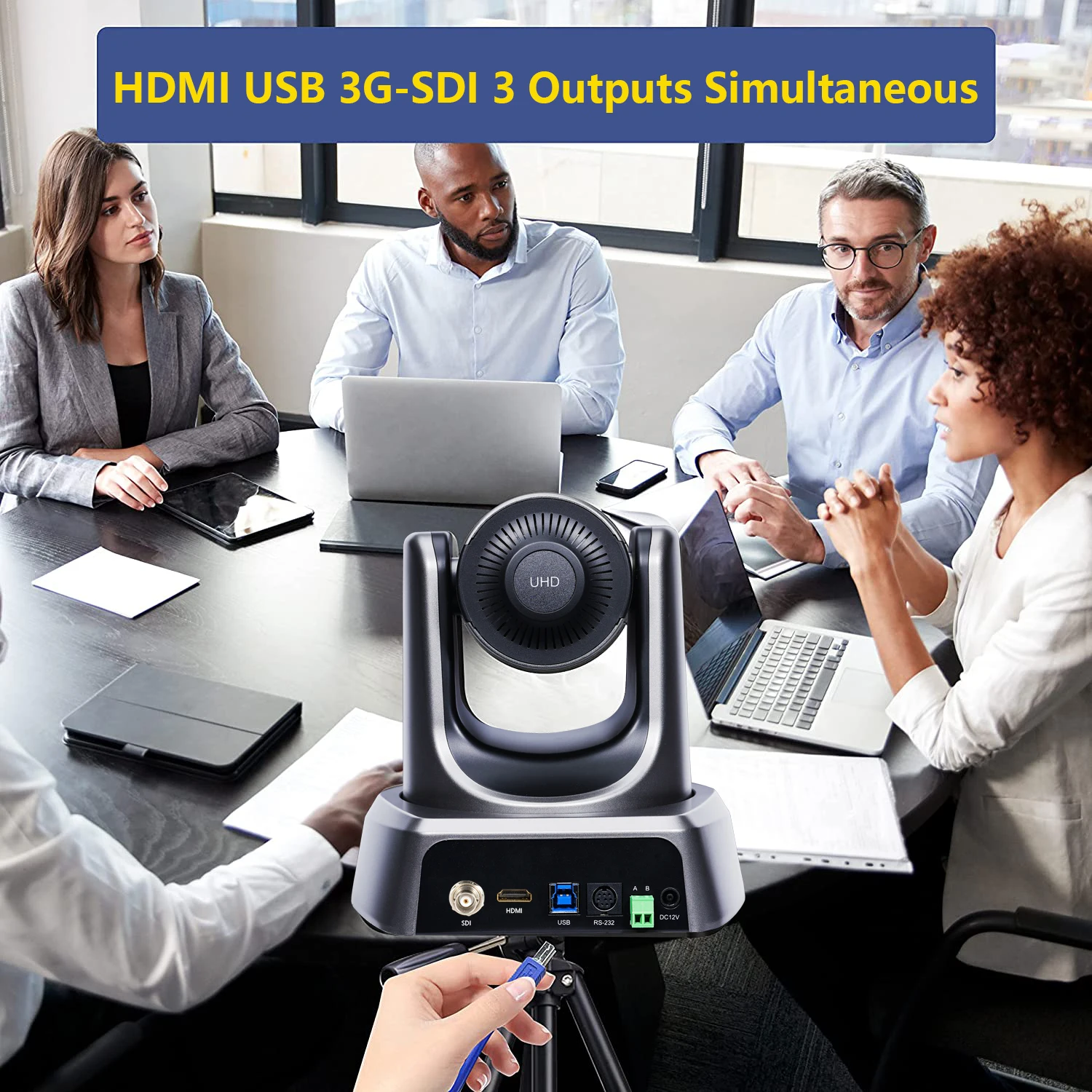

HDMI USB 3G-SDI 3 Outputs Simultaneous:
SDI: SDI Can connect to your SDI Video capture (blackmagic). The effective transmission distance of 3G-SDI Cable is 328ft(100m+).
USB: USB plug and play. Any one can easily setup and connect to your USB PC, Desktop or laptop and control this PTZ Camera. USB cable support 66ft(20m) HD Video transfer
HDMI: HDMI can connect to your smart TV, Monitor or Interactive Whiteboard and supports 98ft(30m) HD Video transfer.
RS-232: RS-232 Slot, support VISCA/PELCO-D/PELCO-P Protocol, and support up to 10 meters RS232 cable control.
RS- 485: RS-485 slot, support VISCA/PELCO-D/PELCO-P Protocol and PELCO-P Protocol and RS485 control cable.

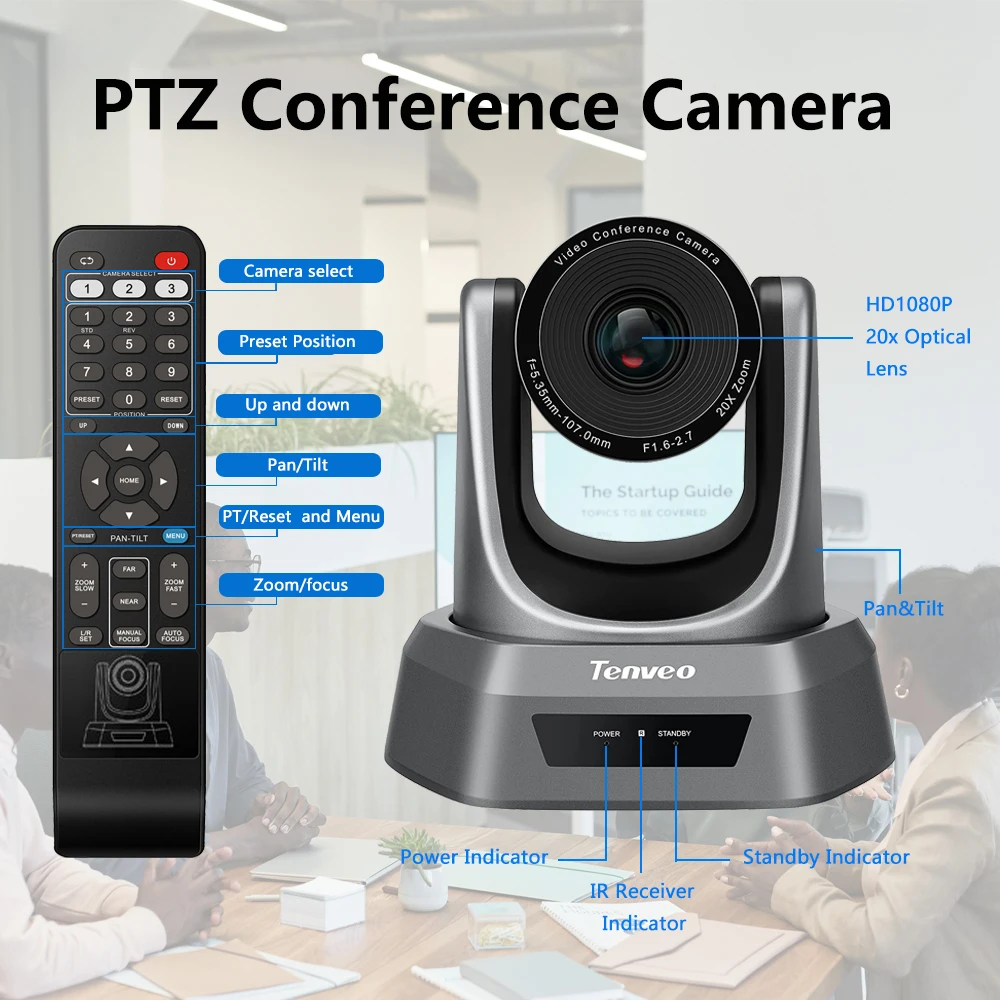

IR Remote Supports 10 presets:
Tips: Press the Number(0-9) directly to call the reserved preset. Fast and Smooth
PRESET+Number: To set preset position of this number.
RESET+Number: To clear preset position of this number.
ACCURATE, SMOOTH, AND SILENT PTZ MOVEMENT
Along with 350-degree pan & 90 degrees tilt rotation at a fast speed & accurate focus to capture any view in conferencing space.
COMPATIBLE WITH POPULAR PC, MAC, LAPTOP, AND CONFERENCE APPS，
This webcam is compatible with Windows XP, Vista, 7/8/8.1, and 10, Mac 10.4 or higher, and laptops, LCDs, and monitors. It's compatible with any online conferencing software, including Zoom, Skype, and Google Hangouts, Cisco WebEx, Microsoft Team, GoToMeeting, BlueJeans and etc.
Camera Parameters:
|
Model No. |
TEVO-NV20A |
|
Image Sensor |
1/2.9″ CMOS |
|
Effective pixel |
2.38 mega pixel(16:9) |
|
Horizontal Resolution |
1080P 30/25, 1080i 60/50, 720P 60/50 |
|
Focal length |
f=5.35-107.0mm |
|
Signal standard |
NTSC/PAL |
|
Zoom |
20x zoom |
|
FOV |
60.2°(W)-3.7°(T) |
|
Gain control |
Auto/manual |
|
Focus |
Auto/manual |
|
SN ratio |
≥50dB |
|
Shutter speed |
1/30 sec to 1/10,000s, auto |
|
Preset position |
Remote-controller supports 10 presets, |
|
Pan/Tilt movement range |
Pan: ±175°(max speed 80°/S), Tilt: -35°~﹢55°(max speed 60°/S) |
|
Control terminal |
RS-232, RS-485 |
|
Control Protocol |
VISCA, PELCO-D, PELCO-P (RS-232, RS-485) |
|
Video output |
USB, SDI, HDMI |
|
Noise Reduction |
2D/3D |
|
Work Temperature |
0°～50° |
|
Work Humidity |
0°～50° |
|
Baud rate |
34800/9600bps |
|
Decoder |
Built-in |
|
Address Set |
1~64 |
|

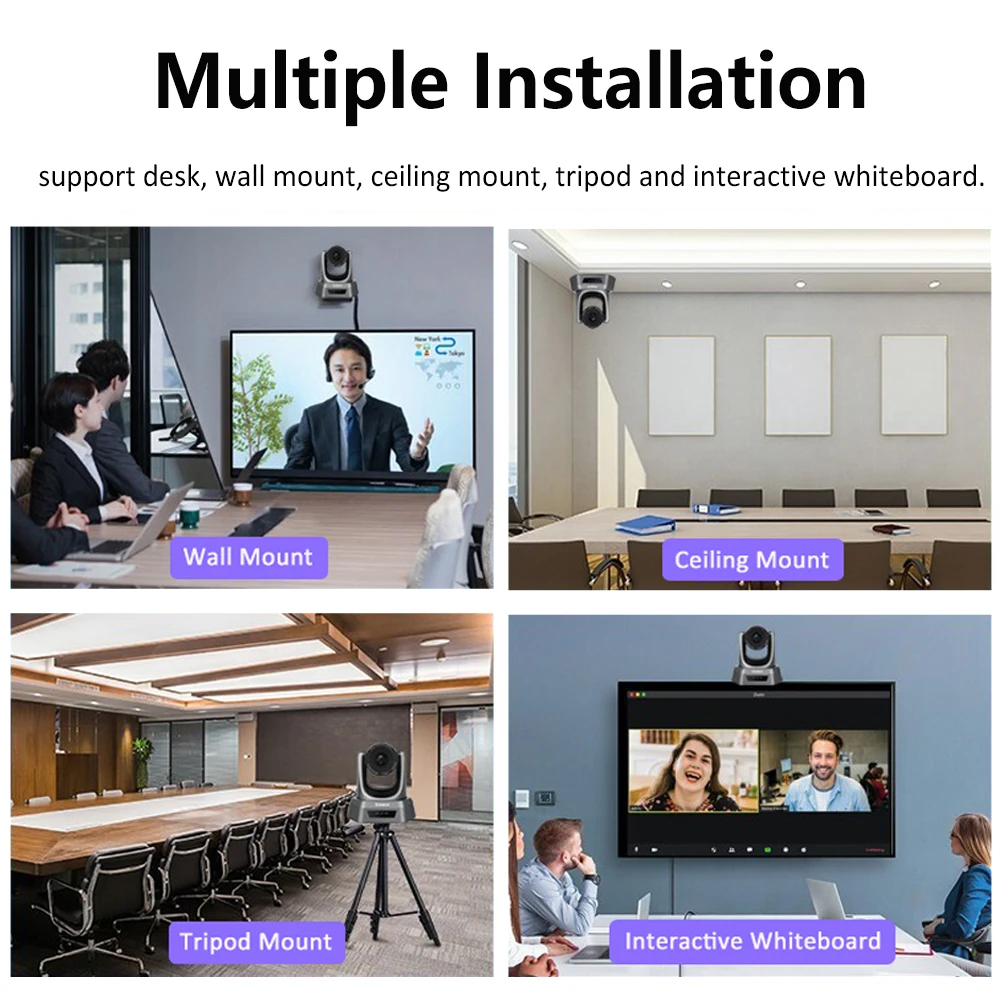

Installation |
Support desktop, Tripod, Wall mount and Ceiling mount |
|
Power supply |
DC12V/2A |
|
Power |
12W |
|
Weight |
1.5kg/2.0kg(before / after packing) |
|
Size |
181*184*174mm/257*220*200mm(before / after packing) |
|

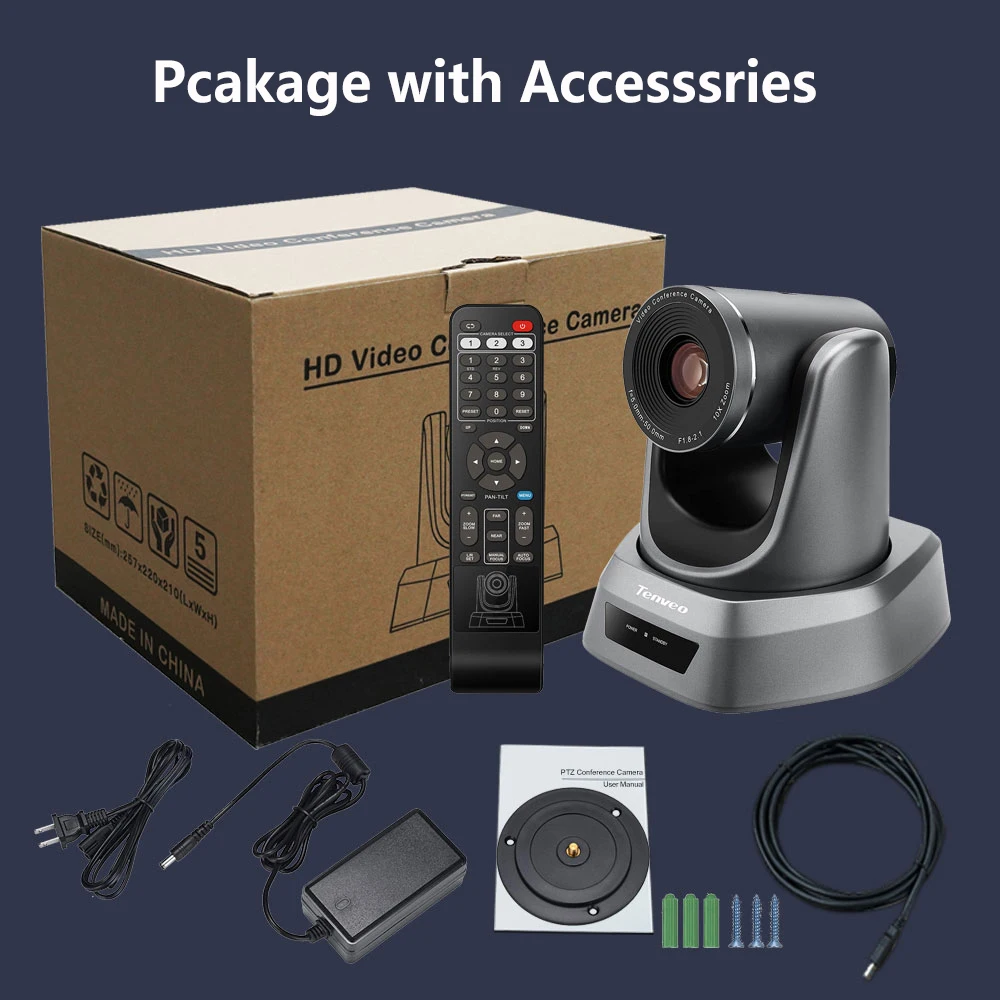

Accessories |
DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual |
