High Definition : 1080P(Full-HD)
Supported Operating Systems : windows xp,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
Lens (mm) : 3.7mm
Style : PT Camera
Connectivity : USB
Installation : Ceiling,Side,Wall Mounted,Vertical Pole Mount,Corner Mount
Scene : Indoor
Color Night Vision : NO
Megapixels : 2MP
Video Compression Format : MJPEG,H.264
IR Distance(m) : 10m
Color : Black
Movement Range(Tilt) : Other
is_customized : Yes
Model Number : VHD3U/VHD203U
Digital Zoom : 16X
Sensor : CMOS
Sensor Brand : SONY
Operating Temperature : -10°-60°
Shell Material : Plastic
Power Supply : Normal
Viewing Angle : 120°
Optical Zoom : 8X
Movement Range(Pan) : -10°-180°
Rechargeable Battery : NONE
1080P USB PTZ Camera 3X Optical Zoom Video Conference Camera Work with Facebook YouTube OBS for Church Education Live Streaming
3x optical zoom
Sleek and intelligent design
Plug & Play USB Connectivity
Crystal clear HD1080P image quality
Accurate, smooth and silent PTZ Movement
Preset: 10 via IR remote setting (255 via RS232)
Superior quality with Full Glass Lens Material
129° wide field of view with no video distortion
1/2.9 inch high quality, 2.1 MEGA PIXEL (16:9) CMOS sensor
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platfom
Camera Parameters:
|
Product No. |
TEVO-VHD3U |
|
Image Sensor |
1/2.9 inch CMOS |
|
Effective pixel |
2.1 mega pixel(16:9) |
|
Horizontal Resolution |
1080P30/25, 720P30/25 |
|
Signal standard |
NTSC/PAL |
|
Zoom |
3x optical zoom |
|
Focal length |
F=3.35-10.05mm |
|
Horizontal Angle |
Near-end 117°～Far-end 35.1° |
|
Gain control |
Auto/manual |
|
Focus |
Auto/manual |
|
SNR ratio |
≥50dB |
|
Shutter speed |
8 to 1/10000s (auto) |
|
Preset position |
IR remote control supports 10 presets Visca Protocol supports 64 presets |
|
Pan/Tilt movement range |
Pan: 350°(max speed 80°/S), Tilt: 180°(max speed 60°/S) |
|
Control terminal |
RS-232, RS485 |
|
Control Protocol |
VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
|
Video output |
USB |
|
Video Compression Format |
YUV, MJPEG, H.264 |
|
Noise Reduction |
2D/3D |
|
Work temperature |
0°C-~+40°C |
|
Storage temperature |
-20°C~60°C |
|
Buad rate |
9600/38400bps |
|
Decoder |
Built-in |
|
Address set |
1~64 |
|
Installation |
Support desktop, Tripod, Wall mount and Ceiling mount |
|
Power supply |
DC12V/ 2A |
|
Power consumption |
12 W |
|
Net weight/Gross weight |
1.5kg/2.85g |
|
Dimension(LXWXH) |
260*175*180 mm /296*225*218mm (before / after packing) |
|

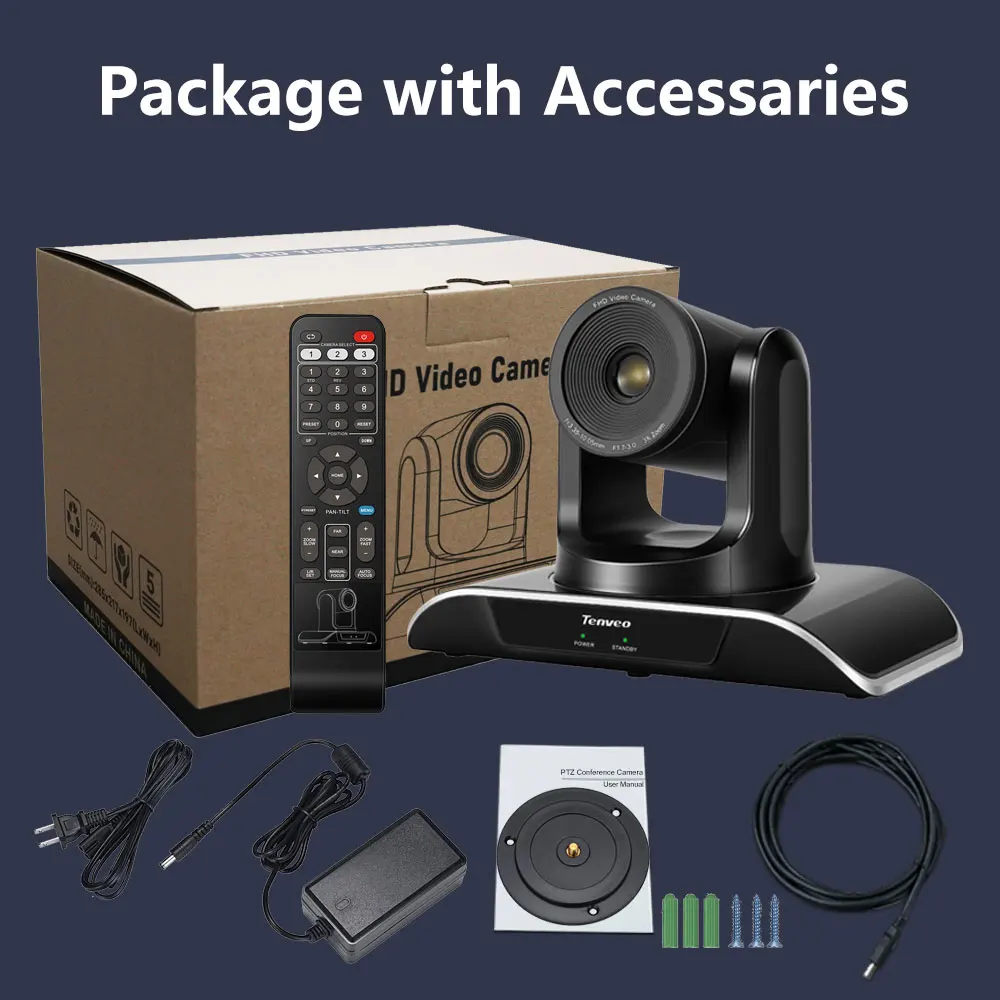

Accessories |
DC 12V Power adaptor, IR remote control, Manual, USB cable, Ceiling brackets & screws. |
